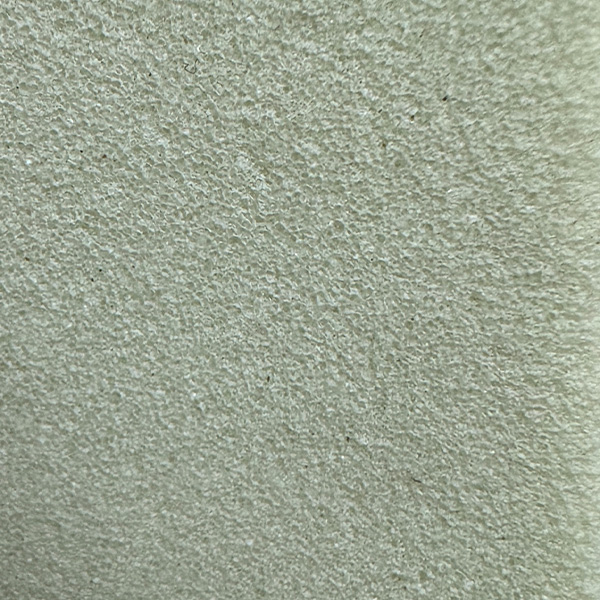

NOH-01

https://foam.winboss.com/web/image/product.template/151/image_1920?unique=9f30b5e

Advantage

  • Low apparent density
  • Exceptional stability in low temperature
  • Very soft, pliable and tough
  • Excellent thermal insulation
  • Low compression set
  • Resistant most chemicals, petroleum products, humidity, will not rot
  • Not include CFC ozone depletion materials & free of 10 Phthalates
    (DBP,BBP,DENP,DINP,DNHP,DIBP,DNPP,DCHP,DIDP,DNOP)

    This combination does not exist.

    Application

    • Buoyancy material for life jackets, sailing vests, work vests, and survival suits
    • Thermal insulation and buoyancy material for wearing apparel
    • Cushioning material

    Fabrication

    Winboss NOH-01 foam can be fabricated in many ways using conventional machines and equipment by:

    Cutting, die-cutting

    Adhesive bonding, welding

    Sewing, stitching

    Specification

    Standard Sheet Size Units Test Method
    		NOH-01
    Density (P.C.F)
    		lb/ft3
    g/cm3

    		2.5~3.5
    0.040~0.056
    Water absorption
    		Wt% Max
    		ASTM D1056-14
    		5
    Compression deflection(25%)
    		lb/in
    kg/cm2
    		ASTM D1056-14
    		1.5-3.0
    0.11-0.21
    Tensile Strength
    		lb/in2
    kg/cm2
    		ASTM D412-16
    		30
    2.1
    Elongation
    		%Min
    		ASTM D412-16
    		150
    Thermal Conductivity
    75°F (24°C)    		BTU.in/hr.sqft.F Max.
    		ASTM C177-19
    		0.26

    ASTM method, in some cases, may be modified slightly to make results more meaningful for end-use application.
